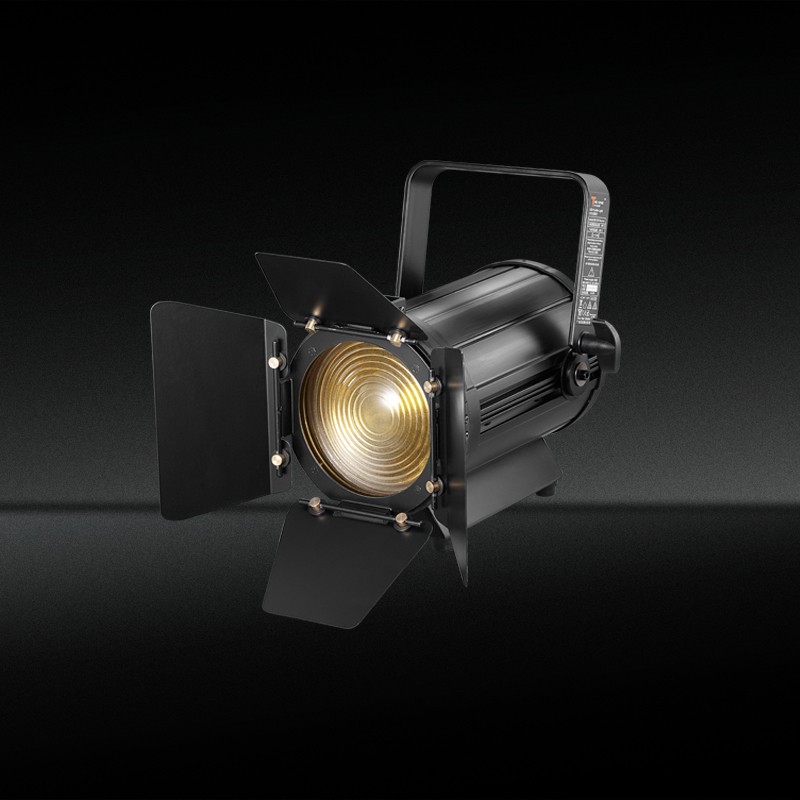

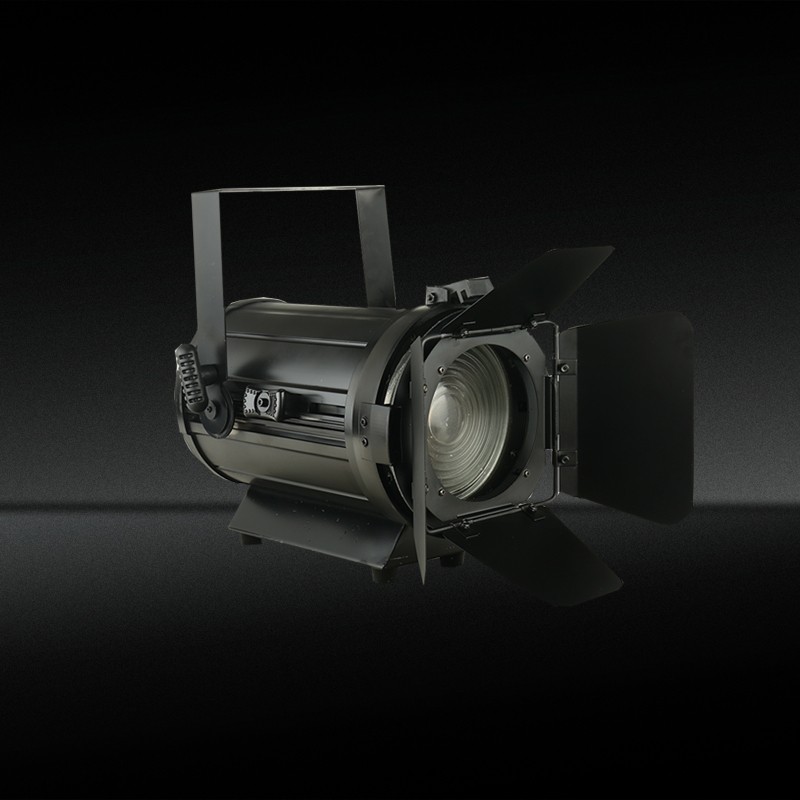

100W Led Fresnel Spotlight with zoom

Contact us

Light Source:
LED Power: 100W
Light Color: single WW or CW( 100W ) , 100W ( 2in1 , 4in1 ) optional
LED Lamp: Imported LED
LED Life Time: over 50,000 hours
Color Rendering Index(CRI): Ra≥90

Power supply:
Voltage :AC100V-240V
Max.power consumption : 130W

Dimmer: 0~100% linearly adjustable
Manual Zooming Scale: 15-50°

With zoom by manual
House Material: Aluminum Alloy
House Color: Black

Control Mode: DMX
Control mode: DMX 512, mater and slave, auto running
DMX Channel: 1/3CH (Single color), 2/5CH(2in1) , 4/8CH(4in1)

Working Environment :
Environment Temperature: -30°C ~ 40°C
Cooling system: No noise fan (copper tube)
IP Grade: IP20

Package :
Net weight: 5kgs
Gross weight: 6.5kgs
Packing size: 36.5x32x32cm (1pc/carton)

The Led Fresnel is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It’s from 15 ~50 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.

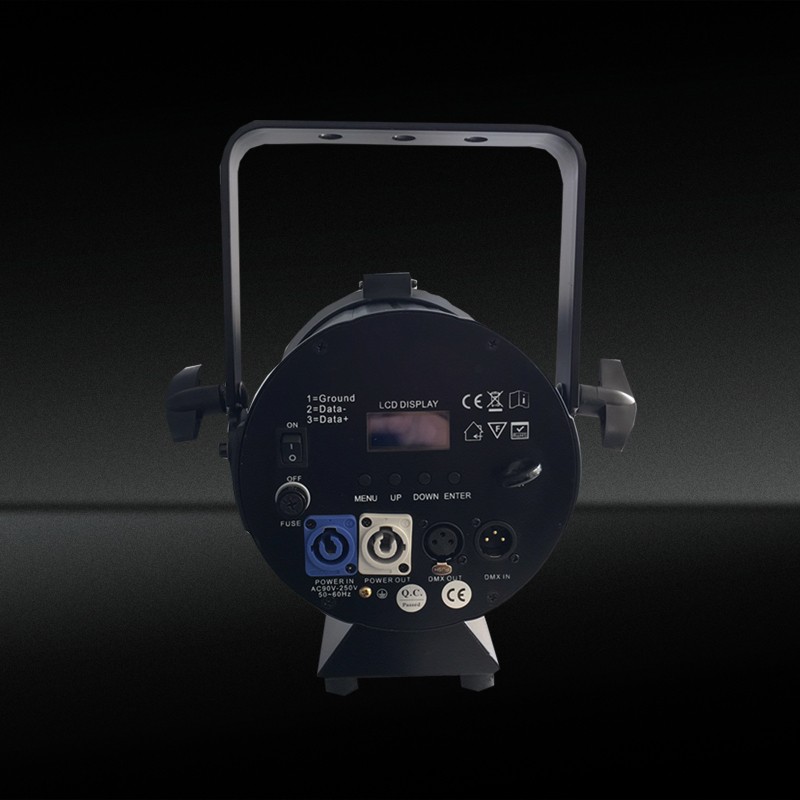

The lense is thread lens, make the light effect soft and bright. We have model of 100W LED. Control of the unit is facilitated via a 4 button menu and LCD display. The whole fixture is enclosed in a robust chassis, and is supplied with filter frame and barndoor.


The color temperature produces the cool and warm color (3200 or 5600K), and the 2in1 version can be from 3200K to 5600K variable-white light that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be manually adjusted between 15° and 50°. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.


We use imported Led Lamp, with high CRI and bright effect. The power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a better fan of copper tube which is without any noise, it’s very quiet and hardly to hear any voice.


The size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of manual zoom function, push the button on the light body to change zoom. The beam can be shaped by the four barndoors attached to the front of the lantern.
