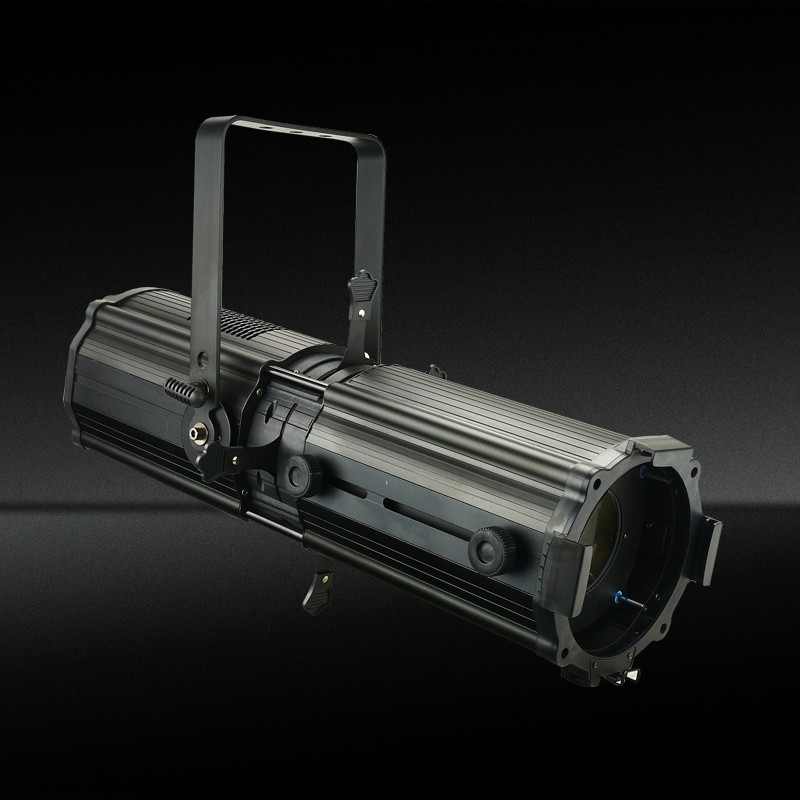

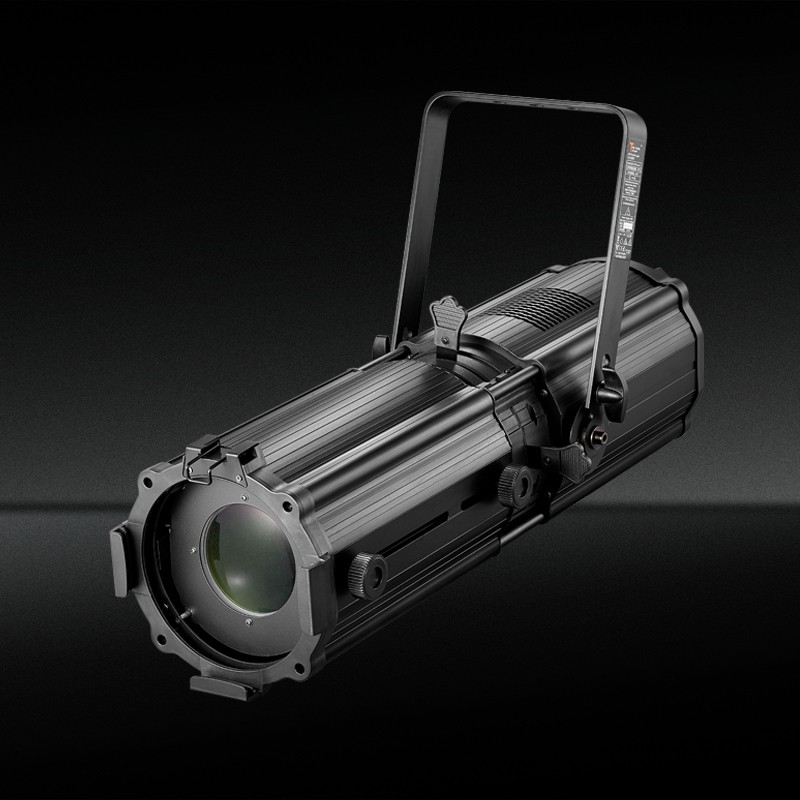

200W/300W LED Profile Spotlight with Zoom

Contact us

Light Source

LED POWER: 180W/200W/300W

LED Color: RGB 3IN1(180w), 2in1(200w), cool white(200w/300w), warm white(200w/300w) COB LED

Led Lamp: Imported Led

LED Life Time: over 50,000 hours

Color Rendering Index(CRI): Ra≥90


Power Supply

Voltage: AC100-240V  50-60Hz

Max.power consumption: 250W/260W/390W


Optics

Beam angle: Zoom from 15°to 38°

Dimmer: 0~100% linearly adjustable

Strobe: 1-25times/sec

Refresh Rate: >400 Video Flicker Free


Features

Focus: Can be adjusted by hand

Technology: High-quality optical system , Glass reflector


Control

Control protocol: DMX 512

Control System: DMX, Auto run and Master/Slave

DMX Channels: 1/3CH(single color), 2/5CH(2in1), 3/7CH(RGB), 4/8(RGBW)


Working Environment

Working Temperature: -30°C~40°C

Cooling System: Pc cooler with low noise (copper tube)

Thermal Sensor Monitoring: Over-temperature Protection

IP Grade: IP20


Package

Net Weight: 11 kgs

Gross Weight: 14 kgs

Packing Size: 83.2x33.2x34.5 cm


The One Studio's Led zoom profile light is known by the range of its beam angle from 15 ~ 38 degree. The beam size can be reduced almost the same as the use of an iris diaphragm.

It's with 2 lense inside, and best for projecting gobos and other shapes, as the size and sharpness of the beam is fully adjustable throughout the beam angle range.

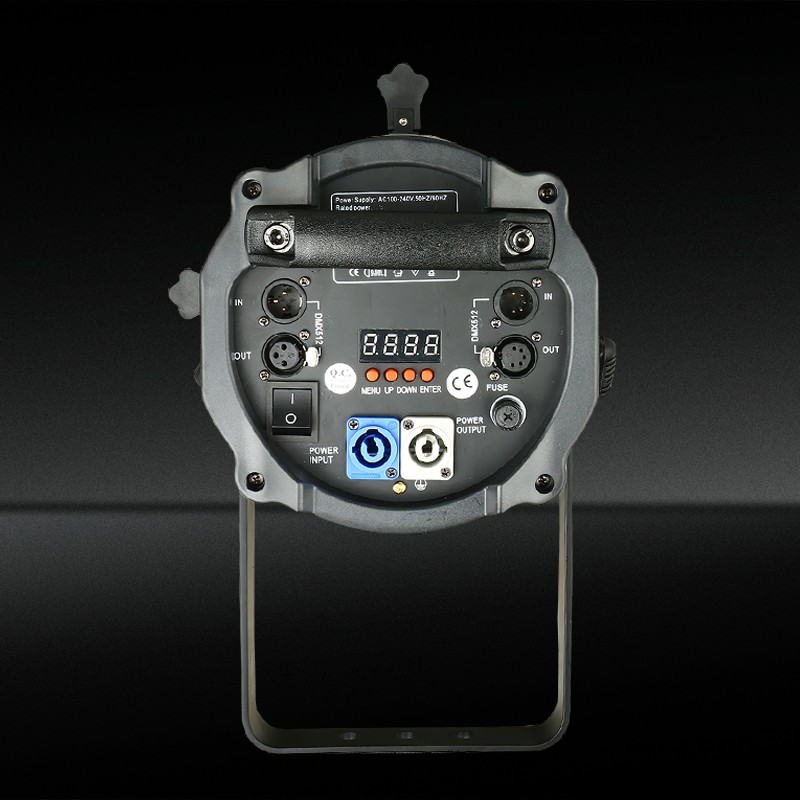

The lighting case is made by the sturdy and durable aluminium alloy, with the 3pin and 5pin DMX connection, can be fixed different clients demand. And can be changed different kinds of shade due to 4 pcs of shutter.


The other part you can choose: gobo holder, gobo, gel frame, iris


Lighting that ought to be in pictures. The lighting system was designed for the studio and other applications where high-definition lighting is a must. It features in soft and uniform light output, high light efficiency, stable color temperature and high color rendering index, two kinds of different color temperature 3200K and 5600K are optional, and the 2in1 version can be from 3200K to 5600K variable-white light that looks just like natural sunlight and mimics the performance of tungsten fixtures. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges. What’s more, due to the zoom function from 15 ~ 38 degree, the focus and lighting field can be changed by hand.


And there is a hole on the light case allow you put the gobo holder inside and make the excellent gobo effect. The profile light can be multi-color model of RGB 3in1, RGBW 4in1.


Using Imported LED Lamp. The power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a better fan of copper tube which is without any noise, it's very quiet and hardly to hear any voice.
