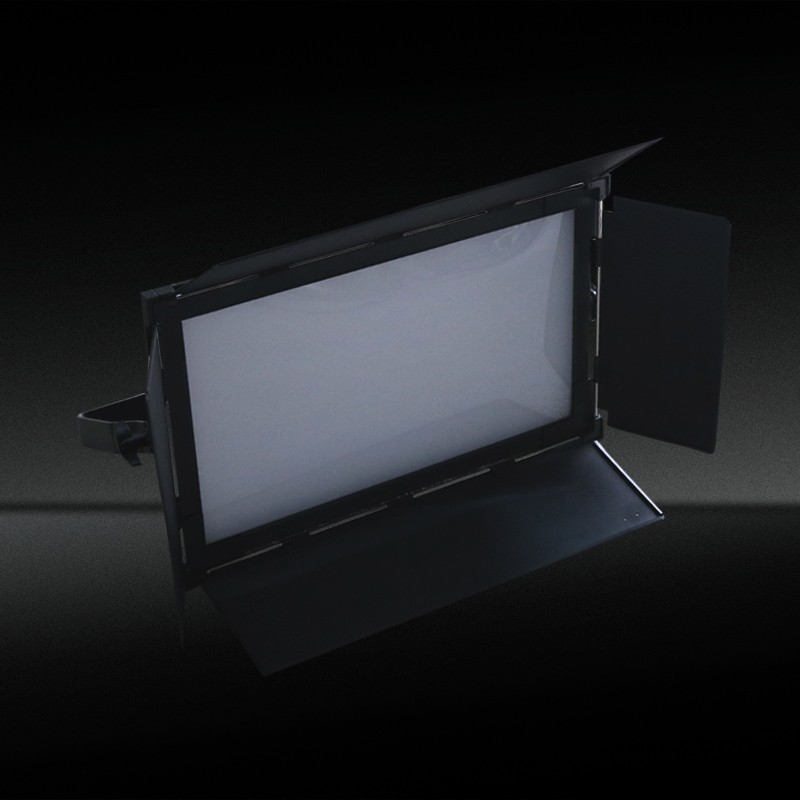

220W Led Video Panel Light

Contact us

Light Source

LED POWER: 1920 x 0.2W
LED Color: 3000K + 6000K
Led Lamp : Imported LED
Color Rendering Index(CRI): Ra≥90
LED Life Time: over 50,000 hours


Power Supply

Voltage: AC100-240V
Max.power consumption: 220W

Power supply Brand: MEAN WELL



Fixed Lens: 180°


Dimmer: 0~100% linearly adjustable
Strobe :1-25times/sec
Dimming Curve: 4 kinds
Dimming Mode Frequency: 500HZ - 25000HZ optional

Light Body Features

Light body: Die casting Aluminum
Body color: Black

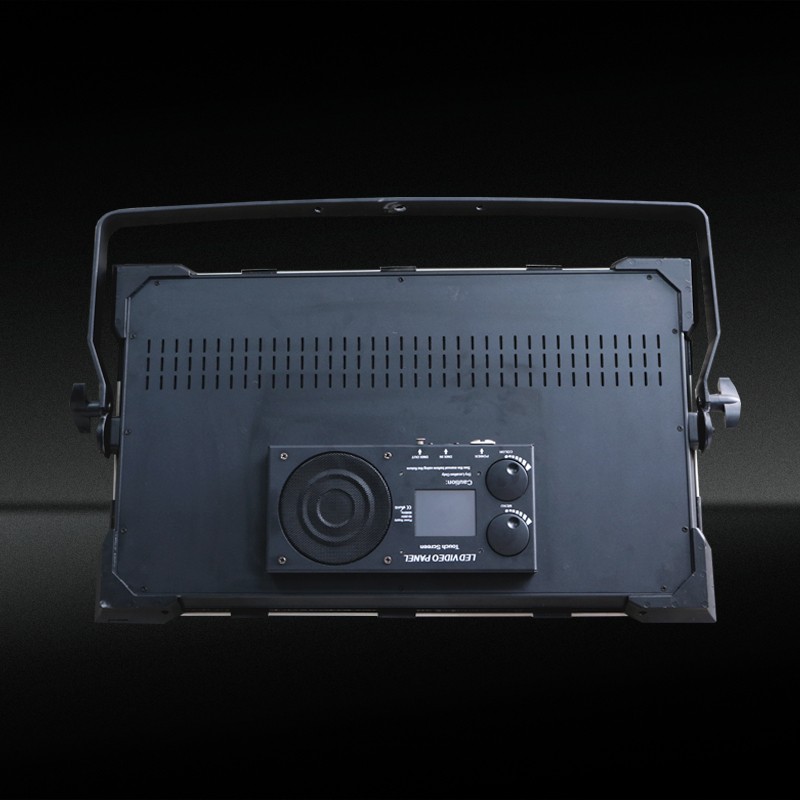

Touch screen: LCD with touch screen



Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 2CH


Working Environment

Working Temperature: -30~40℃
Cooling system: No noise fan
IP Grade: IP20



Net weight: 7kgs

Gross weight: 8.5kgs

220W Led Video Panel Light is new design Technology Improvement, with Lightweight, Thin, High Brightness and Silent.


The One Studio can offers high-quality LED Video panel light at affordable prices, so you can enjoy superior lighting for less. The luminaire is based on the LED panel light of film and television, through the DMX512 module system, make it dimmer, can completely replace the traditional tricolor soft lights. What's more, our Panel Light is with LCD with Touch Screen, convenient operate and control products. The lighting system was designed for the studio and other applications where high-definition lighting is a must. The color temperature produces the cool and warm color (3000 - 6000K) adjustable.


The life time is about 50000 hours, it can be replace the traditional soft light, reduces costly repairs and the need for replacements. A weatherproof Die-casting Aluminum housing protects internal components and is powder coated to resist rust. This LED area light is equipped with a constant-current driver and operates within a wide 100-240VAC range.


The power supply we use is MEAN WELL. And we choose a silent fan for cooling, it's very quiet and hardly to hear any voice.
