Waterproof LED  Folding Fresnel  Spotlight

Contact us

Light Source:


LED Color: 200W Single color warm white, 200W cool white COB LED

Led Lamp: Imported LED

Color Rendering Index(CRI): Ra≥90

Power supply:

Voltage: AC100-240V

Max.power consumption: 260W

Power Supply Brand:MEAN WELL

XLR: 5 and 4 Pins NEUTRIK


Dimmer: 0~100% linearly adjustable

Zooming Scale: 20-55°

LED Life Time: over 50,000 hours


Dimming Curve: 4 kinds

Dimming Frequency: 500HZ - 25000HZ optional

Strobe :1-25times/sec

Light body feature:

Focus: Can be adjusted by hand

Light body: Die casting Aluminum

Body color: Black

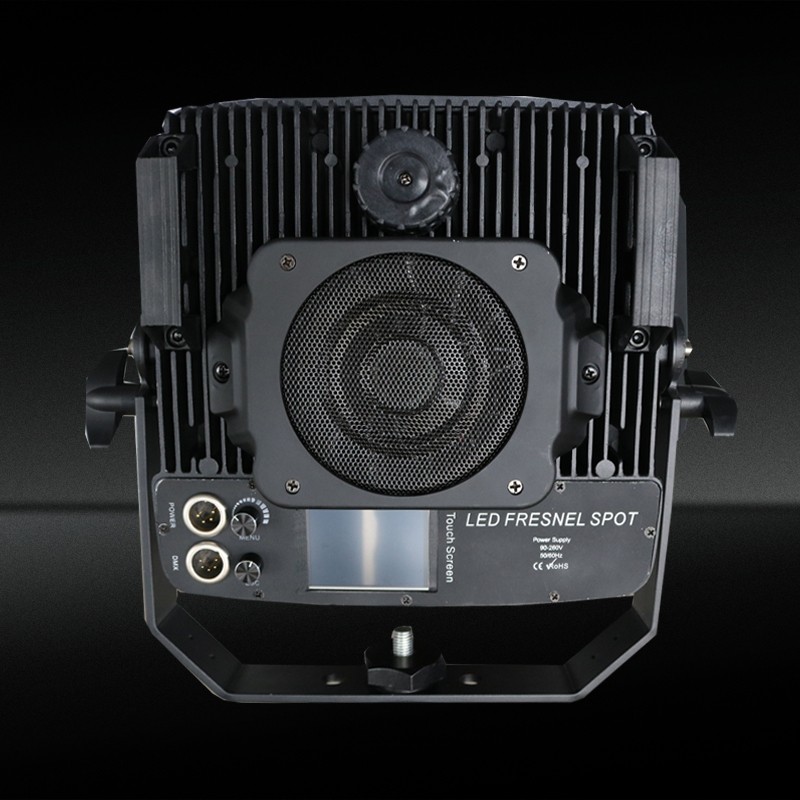

Touch screen: LCD with touch screen


Control Mode: DMX/RDM

Control mode: DMX, Auto run and Master/Slave

DMX: 1/2CH

Working Environment :

Environment Temperature: -30°C~40°C

Cooling system: No noise fan

IP Grade: IP65

This Led Fresnel is a soft-edged spotlight with more control over beam angle than floods, but less control than profiles. It's from 20 ~55 degree. Go green and make a significant reduction in dimmer energy and air-conditioning power consumption.

The size of the beam can be adjusted by moving the lamp and reflector closer to or farther from the lens, by our designed of manual zoom function by the knob, by rotating the knob to change it.

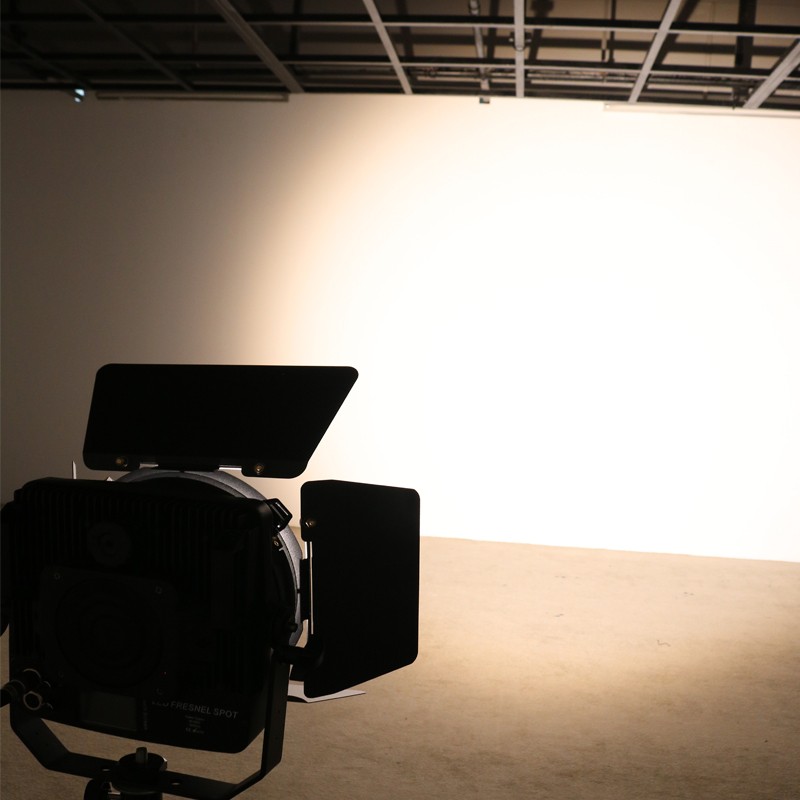

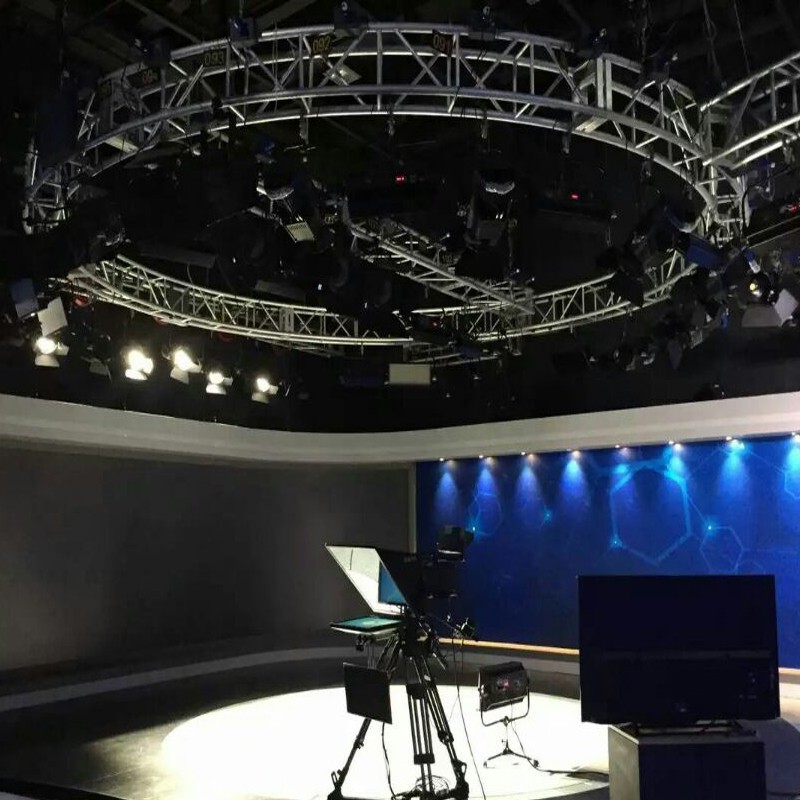

You can accommodate barn doors for glare reduction and beam shaping. Selectable and smooth 16-bit dimming curves make it compatible with older, traditional theater Fresnels. Focusing is a breeze even without a board operator, thanks to manual overrides for zoom and dimming on the back of the unit. It is a perfect fit in theaters, studios or other environments that require smooth, even washes of light.


The lighting case is and made by the sturdy and durable die casting aluminum with IP65 function, you can install it indoor or outdoor ! We have model of 150W/200W LED, producing an output similar to a 750W or 1000W lamp. For the Display, before we using the button digital display on the products, but this item we using the touch screen, then more convenient operation control products. There are 4 kinds of dimmer curve: Standard mode, Incandescent mode, Quick mode and Linear mode. The frequency from 500 Hz ~ 25000 Hz, and flicker-free on the camera, very suitable for all different kinds of event: stage, studio room, broadcast, museum and so on.


The color temperature produces the cool and warm color (3200 or 5600K) that looks just like natural sunlight and mimics the performance of tungsten fixtures. And the beam angle can be DMX adjusted between 20° and 55°. Their temperatures and tints can be tweaked to perfectly illuminate individual skin tones, so they look great in person and on camera. Both arrays output an incredible amount of lumens, for the brightest light in their respective color-temperature ranges.


The power supply is from 100~240V with PFC protect, can protect the power well, for the theater use, we choose a silent fan for cooling, it's very quiet and hardly to hear any voice.
